goodman-main-hydrant

PROJECT

Goodman

Hydrant Pipe & Pressure Gauge Installation

CLIENT
Goodman Property Services
LOCATION

Huntingwood, NSW
TIMELINE
June - August 2024
VALUE

$52,800

PROJECT INFORMATION

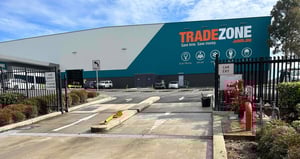

This project involved a comprehensive scope of works undertaken for the fire hydrant pipework replacement and hydrant room pressure gauge at Goodman’s Huntingwood site. From precise service locating and secure site preparation to expert excavation and thorough site restoration, the project was executed with professionalism and attention to detail, ensuring high standards of safety and quality throughout.

gauge-main

OBJECTIVES & PRIORITIES

objectives_quality workmanship
Quality
Workmanship
objectives_compliance
Compliance
objectives_safety
Safety
Management
objectives_minimal disruption
Minimal
Disruption
hydrant-pipe10
TOUCH
hydrant-pipe15
TOUCH
hydrant-pipe14
TOUCH
hydrant-pipe16
TOUCH
hydrant-pipe17
TOUCH
hydrant-pipe12
TOUCH
hydrant-pipe9
TOUCH
hydrant-pipe8
TOUCH
hydrant-pipe4
TOUCH
hydrant-pipe7
TOUCH
hydrant-pipe3
TOUCH
hydrant-pipe1
TOUCH

SCOPE OF WORKS
Plumbing Works - 180mm Steel Fire Hydrant Pipework Replacement

Complete Service Locating

  • Conduct thorough service locating to identify and map all underground utilities to ensure safety and accuracy during excavation.

Site Preparation

  • Supply and install temporary fencing around the work site to secure the area.
  • Provide portable amenities for the duration of the works to support on-site personnel.

Excavation and Concrete Removal

  • Float a 5T excavator to the site for heavy-duty excavation.
  • Perform concrete cutting around the booster set and within the pump house.
  • Remove and dispose of concrete debris to clear the area for pipework installation.

Excavation for Pipework

  • Utilize the excavator and non-destructive digging (NDD) techniques to excavate both the intake and outlet areas from the pump set (inside 180mm HDPE and outlet 150mm blue brute).
  • Install benching and shoring to support the excavation due to the 3.5m depth of the excavated area.

Pipe Replacement

  • Replace the rolled groove riser with a Table B 150mm copper line, connecting the HDPE and Blue Brute lines to the booster set and pump set.
  • Ensure the new lines are securely installed, incorporating a trace line for future maintenance and backfilling with sand.
  • Complete the final 300mm layer using garden mix to maintain site aesthetics.

Site Restoration

  • Reinstate concrete around the booster set and within the pump house, including SL82 mesh and dowel bars for structural integrity.
  • Restore garden mulch to the flower beds and remove all associated rubbish to leave the site clean and presentable.

Operational Hours

  • All works were meticulously planned and executed within normal business hours to minimize disruption to the client’s operations.
gauge5
TOUCH
gauge8
TOUCH
gauge3
TOUCH
gauge1
TOUCH
gauge2
TOUCH
gauge7
TOUCH
gauge6
TOUCH
gauge9
TOUCH

SCOPE OF WORKS
Plumbing Works - Hydrant Room Pressure Gauge

  • Complete on site risk assessment
  • Supply of service locator prior to Excavation
  • Supply and install approximately 150m x 20mm copper service to run from hydrant plant room through carpark into garden bed on side of property
  • Manually excavate trench through garden bed for new copper service (approximately 80m)
  • Supply and install 80m x 20mm PE pipework fire service through garden bed at 600mm depth as per standard
  • Concrete cut through driveway across main entry gate and remove concrete from site (approximately 25m)
  • Supply and install 25m x 20mm copper service across driveway at 600mm depth as per standard
  • Manually excavate 15m trench from driveway to hydrant booster set up at front of property
  • Supply and install 15m x 20mm PE fire service through garden bed at 600mm depth as per standard and connect into existing hydrant gauge
  • Backfill pipework using Sydney sand and lay identification tape with tracing cable 200mm above pipework
  • Reinstate concrete section through driveway using 32mpa concrete and 16mm Steel Bars
  • Test and commission
  • Supply of road plates as required for driveway (3 weeks required)
